Product Description

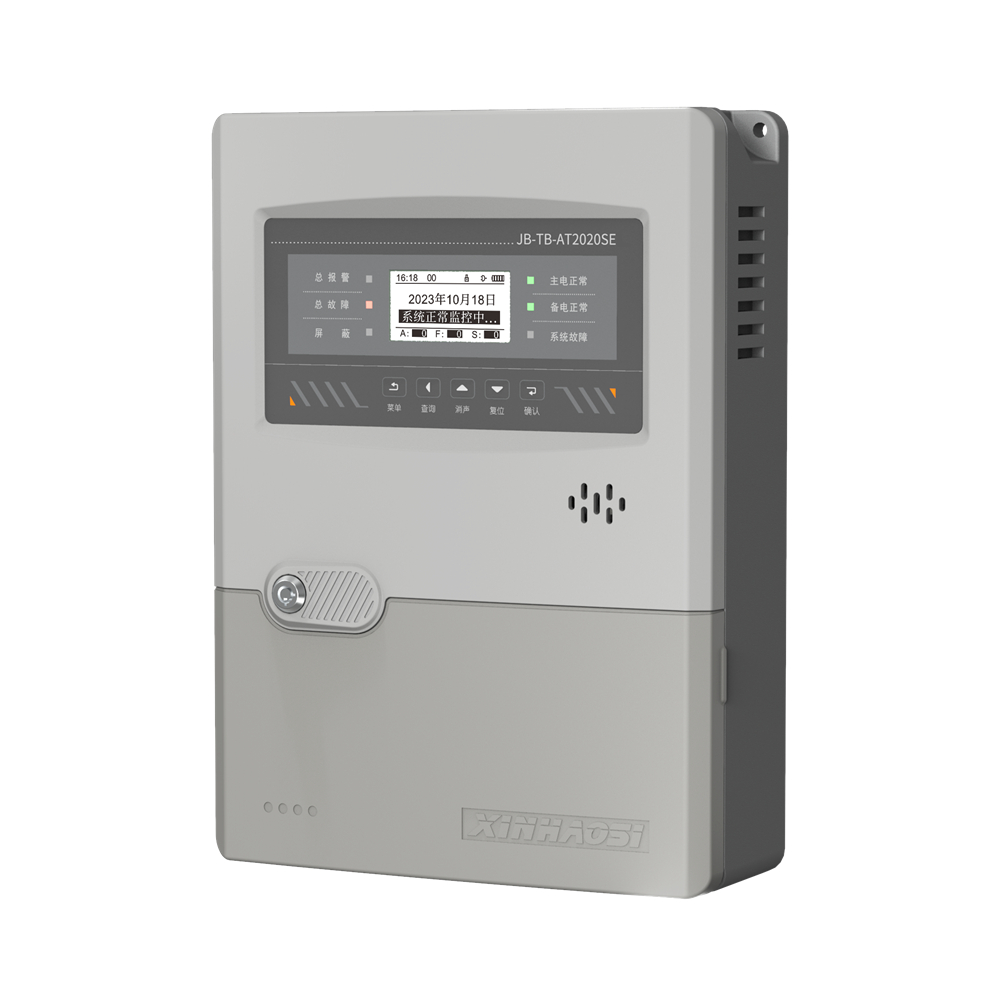

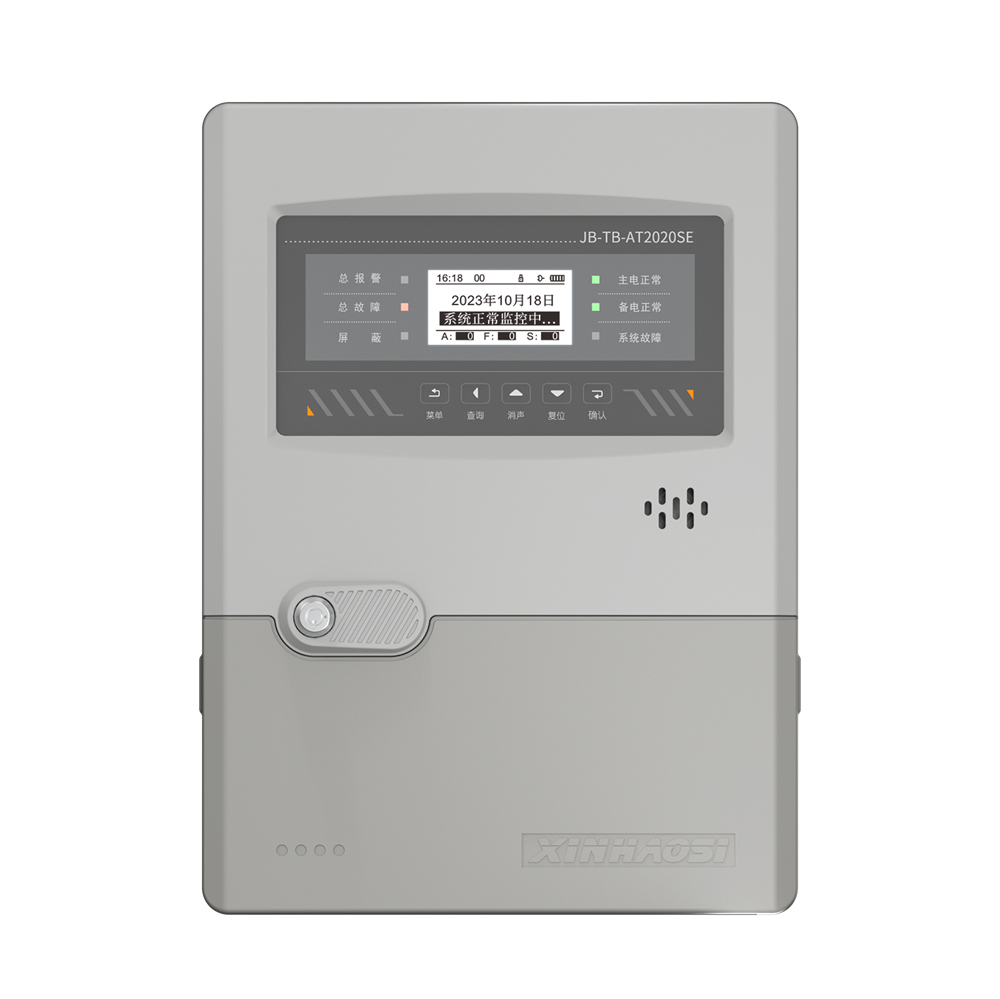

The Gas Detector Controller is a compact and lightweight gas monitoring device specially designed for small-space applications such as small workshops, laboratories, and equipment rooms. Equipped with a user-friendly Chinese/English LCD display, it supports switching between two languages for easy debugging and operation, and clearly displays the installation location of each device to simplify on-site management and maintenance. With a lightweight and portable enclosure made of high-quality V0-rated flame-retardant material, it adapts to various harsh small-space environments. It supports XBUS 2/4 wire protocol, enabling easy and flexible wiring while reducing setup costs. Built-in RS485 and TTL ports ensure compatibility with multiple mainstream communication protocols. This model features a built-in IoT module for direct IoT transmission, eliminating the need for additional wireless equipment configuration.

Dual Language Display

Equipped with a 2.2" LCD dot matrix screen supporting seamless switching between English and Chinese.

Flame-Retardant Safety

Made of high-quality V0-rated flame-retardant material to ensure reliable safety in harsh environments.

Built-in IoT Module

Supports direct NB / 4G wireless transmission without requiring external wireless equipment.

Technical Specifications

Parameter	Specification Detail
Model	JB-TB-AT2020SE
Working voltage	AC 170V - AC 260V / 50Hz
Typical power	5W Max (controller only)
Backup battery	Lithium-ion battery
Display	2.2" dot matrix LCD
Communication	XBUS / HBUS
Mounting type	Wall-mounted
Relay output	Built-in two groups of passive outputs (DC24V/2A or AC220V/1A)
Output type	Hold / Pulse (Adjustable)
Host computer interface	RS485 / UART_TTL
Transmission distance	1500m Max
Compatible detector	XBUS (2/4 wire) or HBUS (4 wire) detectors
Capacity	8 channels Max
Wireless transmission	NB / 4G (Optional)
Size	300(W) x 220(H) x 81(D) mm
Language	English / Chinese

Frequently Asked Questions (FAQ)

What environments is this Gas Detector Controller designed for?

It is specially designed for small-space applications, including small workshops, laboratories, and equipment rooms.

Does it require an external wireless module for IoT transmission?

No, it features a built-in IoT module for direct transmission, eliminating the need to configure additional wireless equipment. Optional NB or 4G transmission can be chosen.

How many channels does the controller support?

The controller supports a maximum capacity of 8 channels.

What protocols are compatible with this gas detector controller?

It supports XBUS (2/4 wire) or HBUS (4 wire) protocols, and the built-in RS485 and TTL ports are compatible with multiple mainstream communication protocols.

What is the maximum signal transmission distance?

The maximum transmission distance supported by this controller is 1500 meters.

What safety features does the enclosure have?

The device has a lightweight and portable enclosure made of high-quality V0-rated flame-retardant material, offering excellent safety performance and durability.
