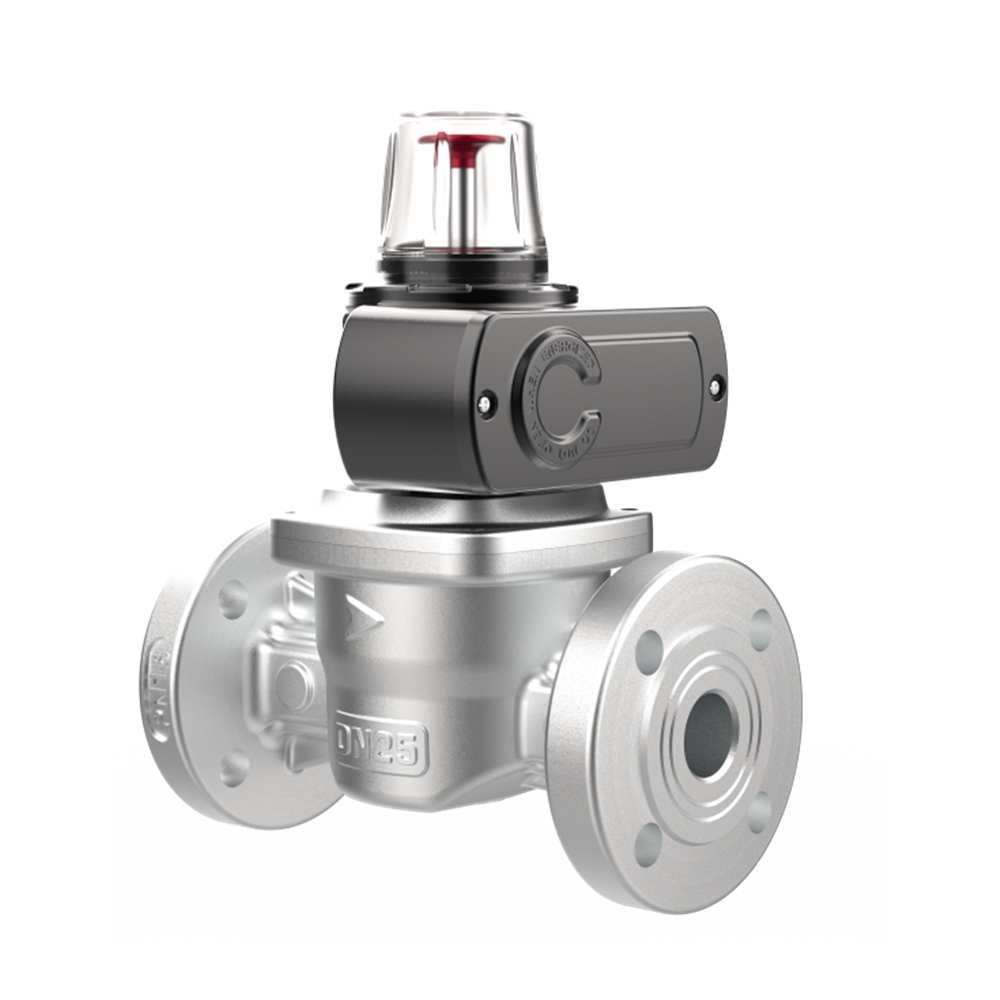

The KT-XF5 Series Industrial Gas Solenoid Valve (Keep Normally Open) combines reliable shut-off and advanced communication for industrial natural gas systems. Its aluminum alloy body offers strong corrosion and pressure resistance, fitting harsh industrial environments. Sealing material has NBR/FKM options, ensuring airtightness. Operating at -20°C to +60°C, it adapts to diverse industrial scenarios. With manual opening, dual closing methods, and a closing time of ≤ 1 second, it quickly cuts off gas in emergencies. Supporting thread/flange interfaces, its stainless steel actuator enhances durability. IP66 protection, a 10-year service life, and an Ex mb IIC T6 Gb explosion-proof grade ensure safety. Unique HBUS communication enables remote monitoring with central control systems. Compliant with GB 44016-2024, it is an essential intelligent protection for modern industrial gas systems.
Ex mb IIC T6 Gb certified safety grade for hazardous environments.
Quick response time of ≤ 1 second in critical emergencies.
Equipped with HBUS communication interface for remote systems.
Dust-tight and protected against powerful water jets.
| Parameter | Technical Detail |
|---|---|
| Applicable Gas | Natural gas |
| Body Material | Aluminum alloy |
| Sealing Material | NBR / FKM rubber |
| Operating Temperature | -20°C ~ +60°C |
| Opening Method | Manual |
| Closing Method | DC pulse energized / Manual |
| Driving Voltage | DC 24V |
| Valve Closing Time | ≤ 1s |
| Interface Type | Thread / Flange (PN16) |
| Actuator Material | Stainless steel |
| Protection Grade | IP66 |
| Service Life | 10 years (typical) |
| Explosion-proof Grade | Ex mb IIC T6 Gb |
| Explosion-proof Type | Encapsulated type |
| Communication Method | HBUS |
| Execution Standard | GB 44016 - 2024 |
| Model | Pipe Diameter | Maximum Working Pressure | Connection Size | Working Voltage | Closing Method |
|---|---|---|---|---|---|
| DRQF-25-0.4/KTLN-XF3 | DN25 | 0.4MPa | 1"FTP | Active Pulse AC220V | Active Pulse / Manual |
| DRQF-25-0.1/KTLN-XF3 | 0.1MPa |
| Model | Pipe Diameter | Maximum Working Pressure | Connection Size | Working Voltage | Closing Method |
|---|---|---|---|---|---|
| DRQF-25-0.4/KTLN-XF3 | DN25 | 0.4MPa | 4-Φ14, D85 | Active Pulse AC220V | Active Pulse / Manual |
| DRQF-25-0.1/KTLN-XF3 | 0.1MPa |
The KT-XF5 Series Industrial Gas Solenoid Valve boasts a highly rapid response, closing in 1 second or less (≤ 1s) to instantly cut off gas flow when triggered.
This series features a unique HBUS communication interface, which allows the valve to communicate directly with central control systems for real-time remote monitoring.
The body is made of premium aluminum alloy for robust corrosion and pressure resistance, the actuator is built with stainless steel, and the seals utilize NBR or FKM rubber to ensure durable airtightness.
Yes, it features an encapsulated explosion-proof design with a rating of Ex mb IIC T6 Gb and holds an IP66 ingress protection grade, making it highly secure in volatile atmospheres.
This industrial valve supports both Thread and Flange (PN16) interface connection types to fit various pipeline configurations.
The KT-XF5 Series is designed for long-term reliable protection, offering a typical service life of 10 years and working efficiently across temperatures ranging from -20°C to +60°C.
