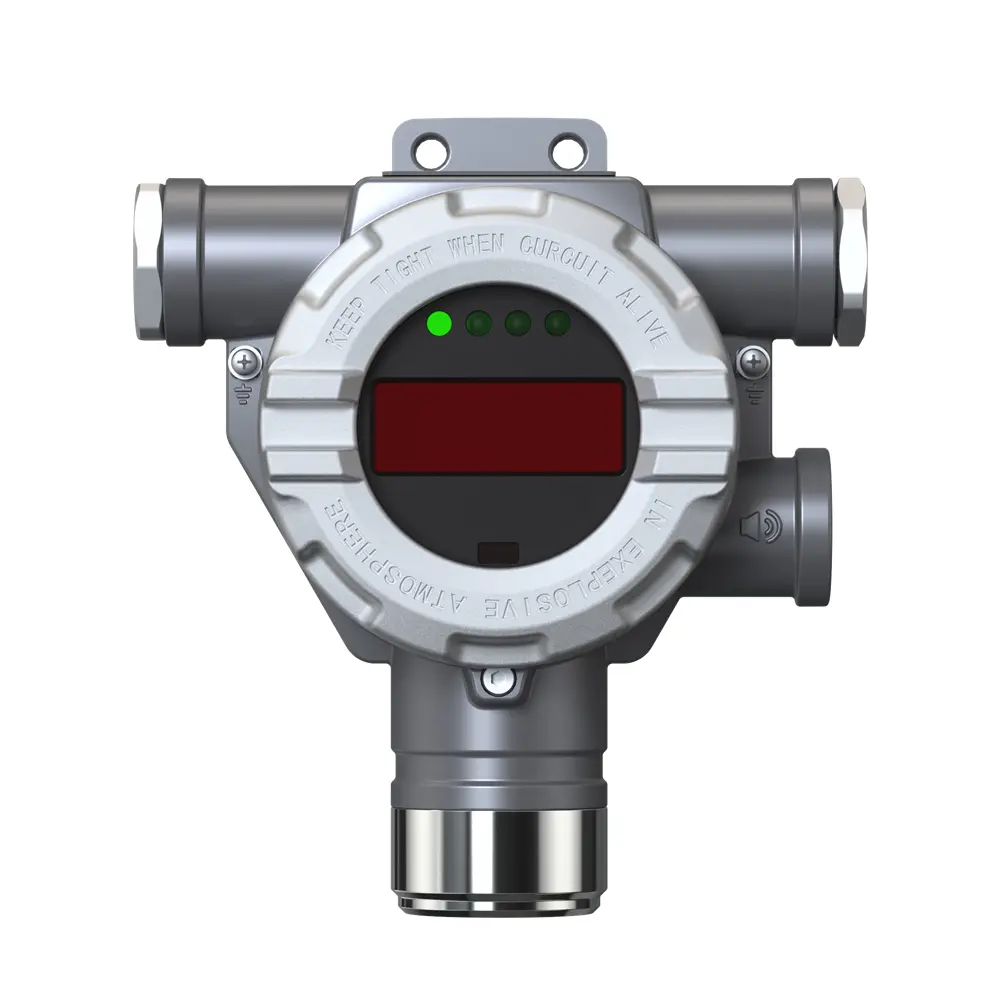

The GTYQ-AT0601 and GTYQ-AT0601A are self-sufficient explosion-proof combustible gas detectors built for independent operation in hazardous industrial zones. Certified for explosion and dust ignition proof performance, they comply with strict safety standards for flammable gas monitoring in high-risk locations. Powered directly by AC220V, they can run stably without relying on an external control host, making them perfect for decentralized monitoring scenarios. Infrared remote control is supported for non-intrusive debugging, allowing on-site parameter adjustment without opening the enclosure. The digital sensor assembly allows direct replacement without on-site calibration, cutting maintenance time and ensuring continuous detection. With an IP66 protection grade, they resist dust and water intrusion to adapt to harsh working environments. The base AT0601 uses a high-brightness digital tube display, while the AT0601A upgrades to an LCD screen and integrates NB-IoT communication for cloud-based centralized monitoring. Both models support offline solenoid valve detection, wireless valve connection and automatic power-failure valve shut-off, providing comprehensive safety protection for urban gas stations, industrial workshops and commercial sites.
Certified safety for high-risk hazardous zones and dust-heavy environments.
Digital sensor assembly enables fast calibration-free replacement.
AT0601A supports wireless cloud monitoring and remote safety measures.
| Parameter | Details |
|---|---|
| Model | GTYQ-AT0601 / GTYQ-AT0601A |
| Measuring gas | Combustible gases (Methane, propane, isobutane, hydrogen, etc.) |
| Measuring type | Diffusion type |
| Measuring method | Catalytic / Optional: Semiconductor |
| Measuring Range | 0-100% LEL |
| Response time | < 15 seconds / 90% scale |
| Accuracy | ±3% / Full Scale |
| Operation mode display | Normal / High Alarm / Low Alarm / Trouble LED |
| Measuring value display | Digital tube (AT0601) / LCD display (AT0601A) |
| Power | AC220V / 50Hz |
| Alarm signal output | Light and sound output / 50mA |
| Relay output | One-channel adjustable relay output (AC220V/1A), One-channel DC24V pulse output (DC24V/2A), Wireless solenoid (Max 4 channels) |
| Conduit connection | Standard: 3xM26x1.5P | Option: FPT3/4', NPT3/4'' |
| Mounting type | Wall / Pole / Ceiling mount |
| Operating temperature | -40°C ~ +70°C |
| Operating humidity | 5% to 95% RH (Non-condensing) |
| Housing Material | Aluminum alloy |
| Dimensions | 150(W) x 166.3(H) x 76(D) mm |
| Explosion Proof | Ex db IIC T6 Gb |
| Certification | Standard compliance documentation available |
| Sensor Type | Measuring Gas | Formula | Measuring Range | Operating Temp | Typical Life | Response Time |
|---|---|---|---|---|---|---|
| Infrared Type | Combustible gases | / | 3-100% LEL | -40 ~ +70°C | 60 months | <30 sec / 90% scale |
| Carbon dioxide | CO₂ | 0 ~ 2% vol | -40 ~ +70°C | 60 months | <45 sec / 90% scale | |
| Nitrous oxide | N₂O | 0-1000 ppm | -40 ~ +70°C | 60 months | <45 sec / 90% scale | |
| Catalytic Type | Combustible gases | / | 3 ~ 100% LEL | -40 ~ +50°C | 36 months | <15 sec / 91% scale |

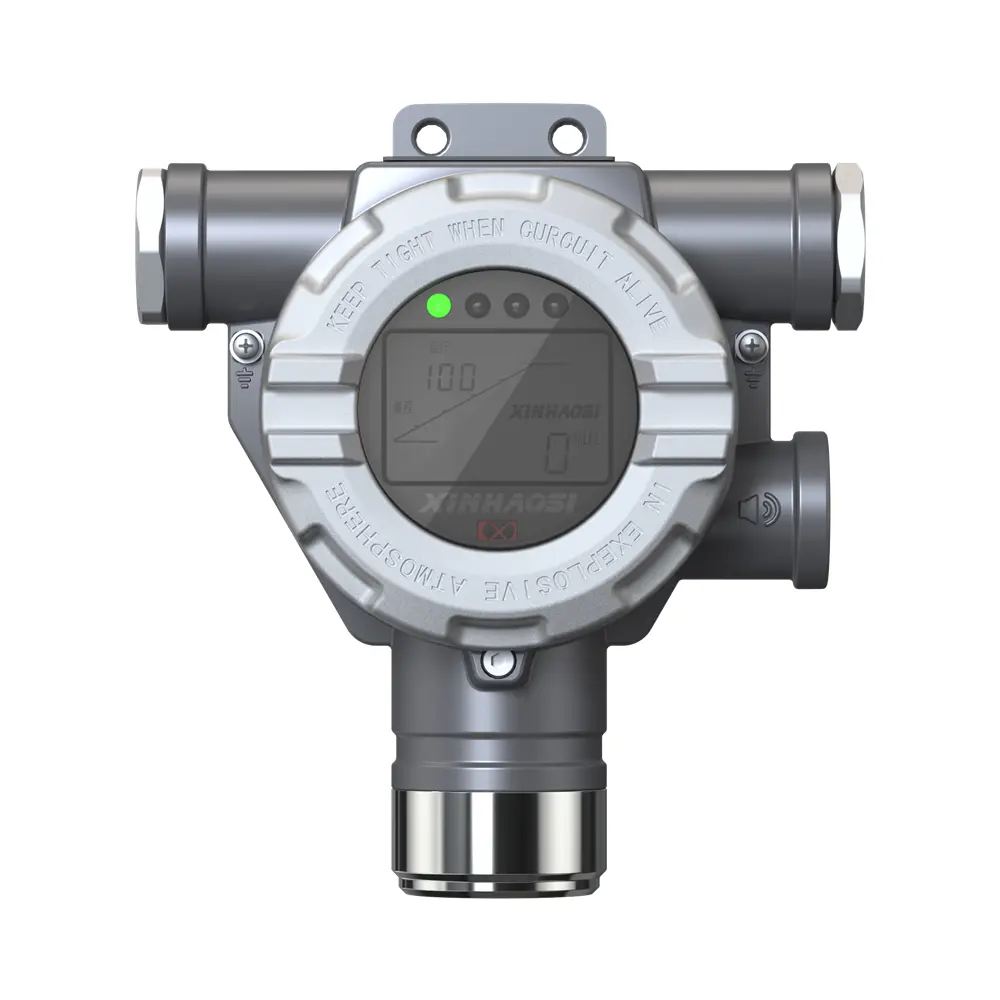

The GTYQ-AT0601 features a high-brightness digital tube display. The GTYQ-AT0601A upgrades to a clear LCD display and integrates NB-IoT wireless communication, which supports cloud-based centralized monitoring.
Yes, both models are powered directly by AC220V. They run completely independently and stably without relying on an external control host, making them ideal for decentralized monitoring setups.
Both models support infrared remote control for non-intrusive debugging. This allows users to configure and adjust parameters on-site without opening the explosion-proof enclosure.
No, the digital sensor assembly supports direct replacement without requiring on-site calibration. This significantly cuts maintenance downtime and keeps operations continuous.
They feature a built-in light and sound alarm output, a 1-channel adjustable relay output (AC220V/1A), a 1-channel DC24V pulse output (DC24V/2A), and can connect with up to 4 wireless solenoid valves. They also support offline solenoid valve detection and automatic power-failure valve shut-off.
Yes, they feature a robust aluminum alloy housing with an IP66 protection grade, protecting them from dust and heavy water jets. They are designed to operate in extreme temperatures ranging from -40°C to +70°C.
