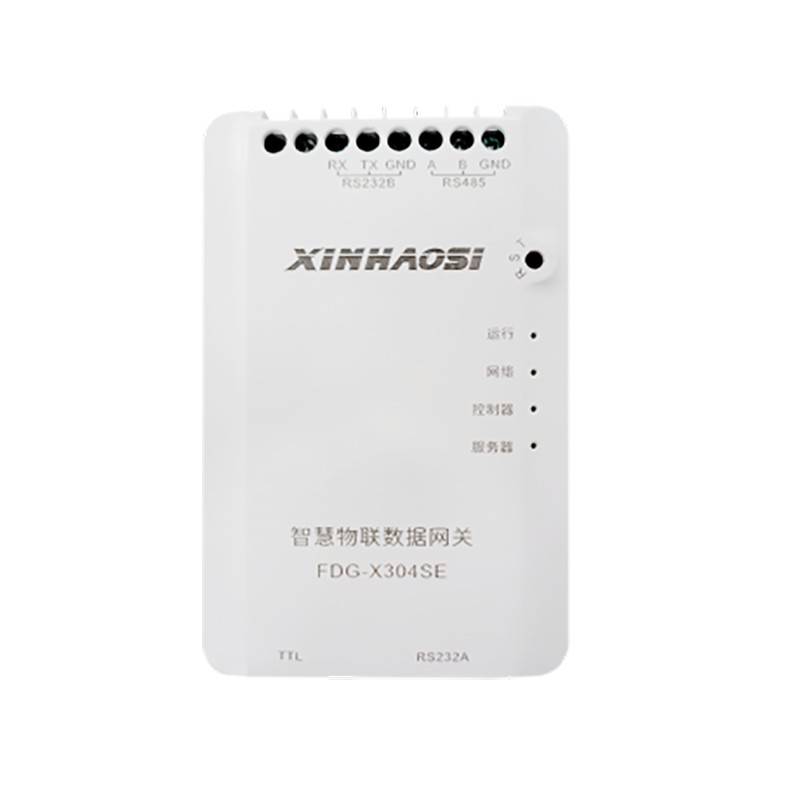

OEM FDG-X304SE Intelligent Data Gateway Supplier, Factory

Send Inquiry

Product Description

📋Specification

Power Consumption	<1W
Communication Method	4G
Display Method	Indicator Light
Power	DB9 interface power supply (Pin 1 positive, Pin 5 negative), TTL power supply
Data Interface	Controller connection end: RS232A, TTL; Host computer connection: RS232B, RS485
Communication Protocol	Controller: XGV5, Slave; Host computer: XGV2, MODBUS V20/V30/V40
Cache Capacity	Input device: 256 points (sensors), Output device: 64 points (external control)
Protection Grade	IP30
Operating Environment	Temperature: -10 ~ +50℃, Humidity: 10 ~ 95%RH (non-condensing)

📝Product Description

description2

❓Frequently Asked Questions

Q What is the power consumption of the device?

The device features an ultra-low power design, with power consumption kept below 1W.

Q What communication protocols are supported for system integration?

It supports the XGV5 (Slave) protocol at the controller connection end, and XGV2 as well as MODBUS V20/V30/V40 protocols at the host computer end.

Q How is the power supplied to the device?

The device can be powered using a DB9 interface (Pin 1 positive, Pin 5 negative) or through a TTL power supply.

Q What are the input and output cache capacities of the device?

The input device cache capacity supports up to 256 points (sensors), and the output device cache capacity supports up to 64 points (external control).

Q What is the operating temperature range and protection rating?

The device has a protection rating of IP30 and is designed to operate in temperatures ranging from -10°C to +50°C, with a relative humidity level of 10% to 95% (non-condensing).
