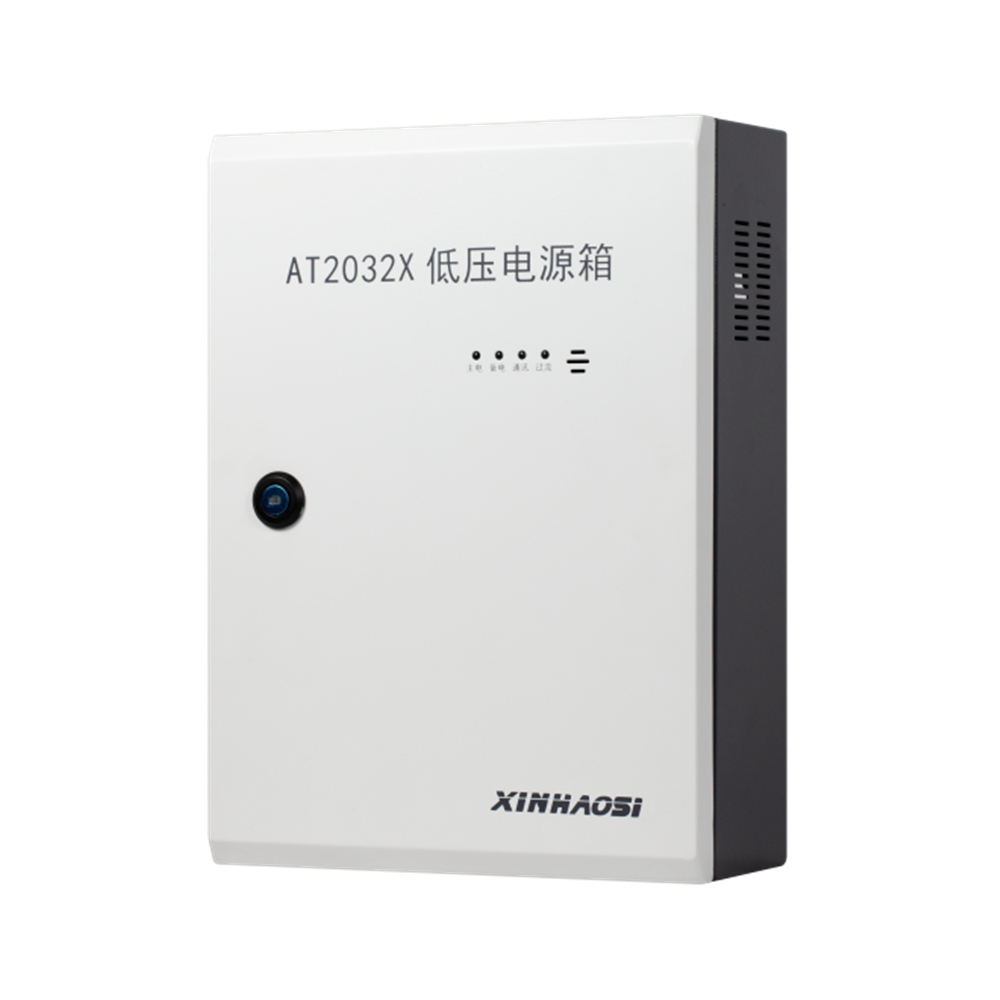

The AT2032X Low Voltage Power Box is a high-capacity, stable low-voltage power supply device for large-scale industrial control systems, power distribution stations and commercial complexes. XBUS communication allows seamless connection with central control systems and peripherals, enabling remote power monitoring, data transmission and fault alarms. Its working voltage (AC 170V-260V/50Hz) adapts to regional grid fluctuations. Equipped with a 12Ah/12V lead-acid backup battery, it provides longer emergency power than AT2031X series to avoid production interruption. 2.5A function bus protection safeguards high-power equipment and complex circuits. Measuring 350mm × 260mm × 112mm, wall-mounted and compact for dedicated spaces, it adapts to (-10~+60)°C and <95%RH environments. With three product types, it meets diverse needs, offering reliable power for high-demand electrical control systems.
| Communication Method | XBUS |
| Working Voltage | AC 170V - AC 260V / 50Hz |
| Backup Power | One Lead-acid battery 12Ah / 12V |
| Function Bus Protection Point | 2.5A |
| Product Dimensions | 350mm × 260mm × 112mm |
| Mounting Type | Wall |
| Working Environment | Temperature: (-10~+60)°C, Humidity: < 95%RH (no condensation), Pressure: (86~106)kPa |
| Product Types | Indoor type / Waterproof type / Explosion-proof type |
A1: It is designed for large-scale industrial control systems, power distribution stations, and commercial complexes that require a high-capacity and stable low-voltage power supply.
A2: The device features XBUS communication, allowing seamless integration with central control systems and peripherals for remote monitoring, data transmission, and fault alarms.
A3: The unit is equipped with a 12Ah/12V lead-acid backup battery, which provides extended emergency power compared to the AT2031X series to prevent production interruptions.
A4: It operates on an input voltage of AC 170V to AC 260V at 50Hz, allowing it to adapt effectively to regional grid fluctuations.
A5: It is built to operate in environments with temperatures ranging from -10°C to +60°C, humidity levels under 95%RH (non-condensing), and air pressures between 86 and 106 kPa.
A6: The AT2032X is available in three product types to meet diverse application needs: Indoor type, Waterproof type, and Explosion-proof type.
