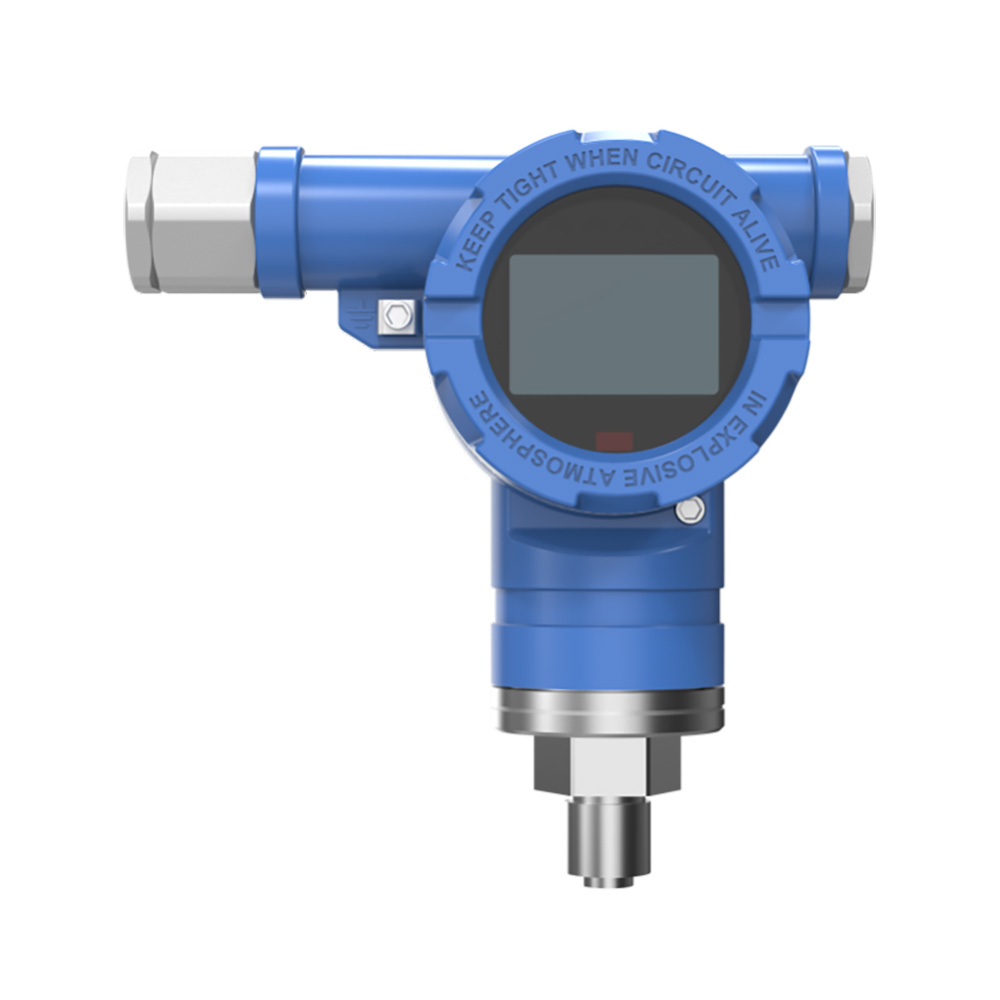

High-Quality XCS-P3051 Pressure Transmitter Manufacturers, Manufacturer

1 / 1

High-Quality XCS-P3051 Pressure Transmitter Manufacturers, Manufacturer

Send Inquiry

Product Description

Specification

Pressure Type	Gauge Pressure
Measurement Range	100kPa/400kPa, other ranges available
Alarm Output	Active sound and light output
Working Voltage	DC24V
Communication Method	XBUS 2-wire , 4~20mA 2-wire HART, RS485
Display Mode	Segment LCD
Housing Material	Aluminum alloy / 316 stainless steel
Sensor Housing	316 stainless steel
Protection Grade	IP66
Explosion-proof	Ex db IIC T6 Gb / Ex tb IIC T80°C Db
Ambient Temperature	-30~+70°C
Medium Temperature	-40~+120°C
Process Connection	M20X1.5 external thread, other threads customizable

Model Specification

Model	Sensor	Pressure Measurement Type	Measuring Range
XCS-P3051D-GP03	Diffused Silicon	GP - Gauge Pressure	100kPa / 400kPa
XCS-P3051T-GP03	Single Crystal Silicon	GP - Gauge Pressure	100kPa

Note: Measuring ranges, communication methods, pressure measurement types, process connection threads, etc., can be customized.

Product Description

description2

Frequently Asked Questions

What measuring ranges and pressure types are supported by these sensors?

The sensors support Gauge Pressure (GP) type. The standard measuring ranges are 100kPa and 400kPa, with other ranges customizable to meet specific requirements.

What communication methods are available?

It supports XBUS 2-wire, 4~20mA 2-wire HART, and RS485 communication interfaces for flexible system integration.

What are the construction materials of the housing and sensor?

The main housing is constructed from Aluminum alloy or 316 stainless steel, while the sensor housing is made of durable 316 stainless steel.

What is the environmental operating range for this sensor?

The sensor is rated for ambient temperatures of -30 to +70°C and medium temperatures of -40 to +120°C, with an IP66 protection grade.

Does the sensor have explosion-proof certification?

Yes, the sensor is designed for hazardous environments with explosion-proof ratings of Ex db IIC T6 Gb and Ex tb IIC T80°C Db.

Can the process connection threads be customized?

The standard connection is an M20X1.5 external thread, but other process connection threads can be customized based on your needs.
